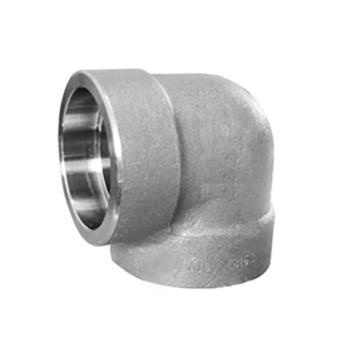

Stainless steel forged 90° socket welded elbow

Short Description:

The socket fitting is formed by die forging blank of round steel or steel ingot and then machined by lathe. The connection forms of socket fittings series include: socket welding connection (SW), butt welding connection (BW) and threaded connection (TR). The pressure rating of the tube fitting is 3000LB (SCH80), 6000LB (SCH160) and 9000 (XXS) in general socket welding and butt welding connection forms. The pressure levels of threaded fittings are 2000LB, 3000LB and 6000LB.


Product Detail

Product Tags

Product Detail

JLPV is specialized in development and manufacturing of stainless steel forged 90° elbow. The company mainly produces the industrial butt welding pipe fittings made of austenitic stainless steel, duplex steel and super duplex steel. Right now, the company’s products are well sold in more than ten provinces and regions in China (including Hong Kong and Taiwan) and the products based on the American standard and EU standard are marketed in USA, Canada, Brazil, Germany, UK, France and Middle East. Its product quality is unanimously praised by both domestic and foreign customers. The company is composed of the marketing department, purchase department, quality department, production technology department, HR department and financial department. The quality department has two parts: physical & chemical laboratory and quality inspection workshop; the production technology department consists of blanking workshop, forming workshop, welding and heat treatment workshop, machining workshop, pickling and polishing workshop, and packaging workshop. Each workshop is established according to the working procedures, which can facilitate specialized and serialized production, and achieve stable enhancement of production efficiency as well as product quality.

Design standard

1.NPS:DN6-DN100, 1/8"-4"
2.Pressure Rating:CL3000, CL6000, CL9000
3.Standard: ASME B16.11
4.Material:
①Stainless Steel: 31254, 904/L, 347/H, 317/L, 310S, 309, 316Ti, 321/H, 304/L, 304H, 316/L, 316H

②DP Steel: UNS S31803, S32205, S32750, S32760

③Alloy steel: N04400, N08800, N08810, N08811, N08825, N08020, N08031, N06600, N06625, N08926, N08031, N10276
