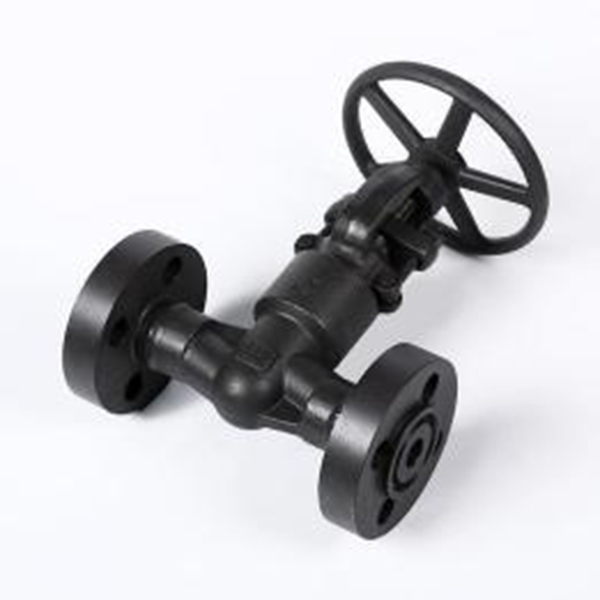

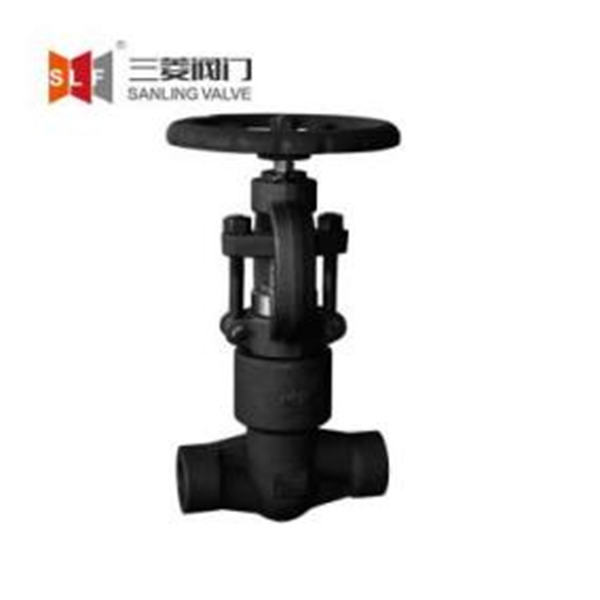

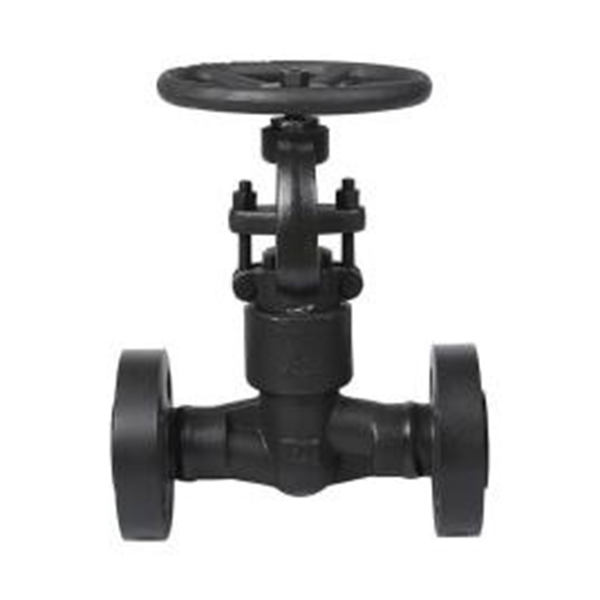

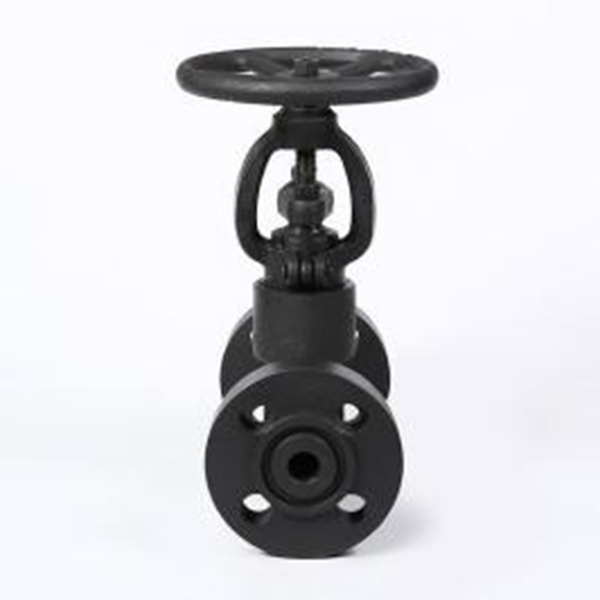

Forged steel pressure seal globe valve

Short Description:

JLPV forged steel pressure seal globe valves are manufactured to the latest edition of API602, BS5352 and ASME B16.34. And tested to API 598.All Forged steel valves from JLPV VALVE are strictly 100%tested before shipment to guarantee zero leakage.


Product Detail

Product Tags

Product Detail

The valve is generally robust, has a short opening height, is simple to make, requires little maintenance, and can withstand high pressure in addition to low and medium pressure. This is due to the limited amount of friction between the sealing surfaces during the opening and closing operation. Its closing mechanism relies on the pressure exerted by the valve bar, which causes the disc sealing surface and valve seat sealing surface to close and stop media flow.

We solemn promise to all our clients: our hanker is supply 100% eligibility products with high quality and cheap price; our aim is establish topping international brand; we will use the best service to supply you the worthest products, welcome your cooperation to create a mutual brilliant future.

Design standard

The main construction features of JLPV Forged steel valve are following:
1.  Full bore and standard bore (reduced bore) design are available.
2.  Three bonnet design for forged gate valve, globe valve and check valve
--Bolted Bonnet, welded bonnet and pressure seal design
3.  Y-pattern body for forged globe valve, extended body and extended stem for all forged valves.
4.  Integral flanged end and welded flanged end design are available

Speciications

The range of JLPV Forged steel valves design is as follows:
1.Size: 1/2” to 2”   DN15 to DN1200
2.Pressure: Class 800lb to 2500lb  PN100-PN420
3.Material: Carbon steel and stainless steel and other special materials.
NACE MR 0175 anti-sulfur and anti-corrosion metal materials
4.Connection ends:
Socket weld end to ASME B16.11
Screwed end (NPT,BS[) to ANSI/ASME B 1.20.1
Butt weld end (BW) to ASME B 16.25
Flanged end (RF, FF, RTJ) to ASME B 16.5
5.Temperature: -29℃ to 580 ℃
JLPV valves can be equipped with gear operator, pneumatic actuators, Hydraulic actuators, Electric actuators, bypasses, locking devices, chainwheels, extended stems and many others are available to meet the customers’ requirements.
