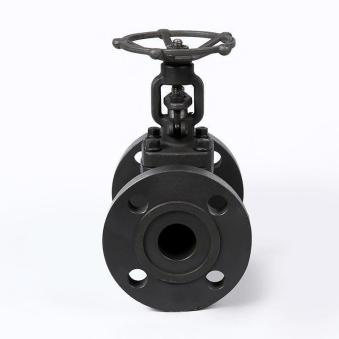

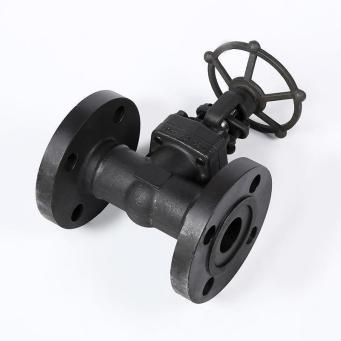

The toughest process applications are suitable for this heavy duty forged steel flange gate valve. There is relatively little turbulence and very little pressure reduction when the media passes over it. This gate valve is utilized in fields that require the separation of fluids and viscous fluids for this reason. The API602-designed forged steel flange gate valve has a raised stem outer screw and yolk. Dedicated to isolating both flow directions. Why utilize these gate valves, you ask? They are excellent for pipes carrying process liquids. The beneficial tight shutdown offered by these forged gate valves is available in both horizontal and vertical situations. They are used to throttle steam, gas, or liquids and also provide a very small level of control. Engineers favor these over gate valves because they are simple to use and isolate trapping stations.
Our forged steel flanged gate valve is designed for heavy-duty, industrial, and steam applications with steam, water, petroleum, vapors, and gas. It may suit flanges between ANSI 150 and ANSI 300, depending on setup. 316 Stainless Steel handle, A105N steel body, rising stem, and manual flanged gate valve with handwheel.
The main construction features of JLPV Forged steel valve are following:
1. Full bore and standard bore (reduced bore) design are available.
2. Three bonnet design for forged gate valve, globe valve and check valve
--Bolted Bonnet, welded bonnet and pressure seal design
3. Integral flanged end and welded flanged end design are available
The range of JLPV Forged steel valves design is as follows:
1.Size: 1/2” to 2” DN15 to DN1200
2.Pressure: Class 800lb to 2500lb PN100-PN420
3.Material: Carbon steel and stainless steel and other special materials.
NACE MR 0175 anti-sulfur and anti-corrosion metal materials
4.Connection ends:
Socket weld end to ASME B16.11
Screwed end (NPT,BS[) to ANSI/ASME B 1.20.1
Butt weld end (BW) to ASME B 16.25
Flanged end (RF, FF, RTJ) to ASME B 16.5
5.Temperature: -29℃ to 580 ℃
JLPV valves can be equipped with gear operator, pneumatic actuators, Hydraulic actuators, Electric actuators, bypasses, locking devices, chainwheels, extended stems and many others are available to meet the customers’ requirements.
