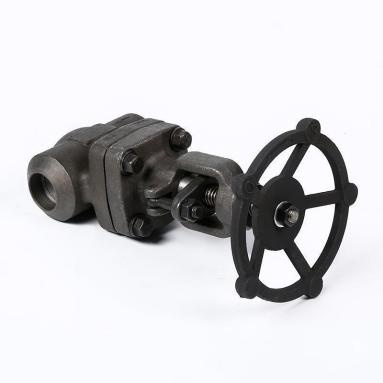

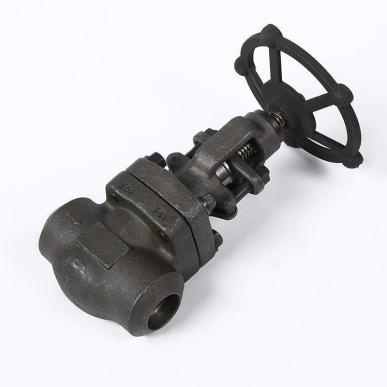

JLPV Forged Steel Globe Valves are available in sizes ranging from 1/2"(DN15) to 2"(DN50) and have pressure ratings of 800 and 1500 class in regular(reduced) ports. The butt weld ends are bolted bonnet, outside screw and yoke type, rising spindle&non rising hand wheel construction. Our forging globe valves are offered in cryogenic service, welded bonnet design, pressure seal bonnet design, and bolted bonnet design. To fit high temperature and pressure industrial applications, JLPV manufactures forged steel globe valves with threaded bodies in a variety of body materials, including ASTM A105-forged carbon steel, ASTM A182 F304/304L/316/316L-forged stainless steel, and ASTM A182 F11/22-alloy steel. F6 face seat and disc are available for applications involving high pressure and temperature. Forged steel globe valve available in threaded end(BSP/NPT female), socket weld end, butt weld end, weld neck end.
Body and Bonnet are made of high-quality forging.
The forgings have high-performance precision machining.
Body-bonnet joint with a spiral coiled gasket that prevents leaks
Grounded stem finish
two-piece self-aligning gland
The stuffing box may be repacked more easily with the valve in the completely open position thanks to the back seating function.
Industries where forged steel globe valves are used
generally excellent flow control
Industrial processes and power plants
Refineries & Petrochemical Facilities
Sugar factories and distilleries
Other non-aggressive mediums include water, steam, gas, and oil.
On request, other applications
The range of JLPV Forged steel valves design is as follows:
1.Size: 1/2” to 2” DN15 to DN1200
2.Pressure: Class 800lb to 2500lb PN100-PN420
3.Material: Carbon steel and stainless steel and other special materials.
NACE MR 0175 anti-sulfur and anti-corrosion metal materials
4.Connection ends:
Socket weld end to ASME B16.11
Screwed end (NPT,BS[) to ANSI/ASME B 1.20.1
Butt weld end (BW) to ASME B 16.25
Flange end (RF, FF, RTJ) to ASME B 16.5
5.Temperature: -29℃ to 580 ℃
JLPV valves can be equipped with gear operator, pneumatic actuators, Hydraulic actuators, Electric actuators, bypasses, locking devices, chainwheels, extended stems and many others are available to meet the customers’ requirements.
