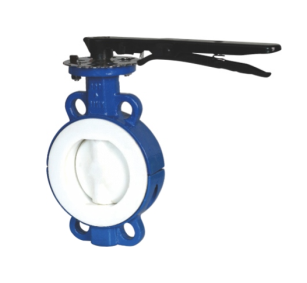

Multi-standard soft seal centric butterfly valve

Short Description:

JLPV Centric Butterfly Valves are the valves which use disc type butterfly plate to rotate 90 ° back and forth to open, close or adjust the medium to control the flow. The They have not only simple structure, small volume, light weight, low material consumption, small installation size, small driving torque, simple and rapid operation, but also good flow regulation function and closing sealing characteristics. JLPV Centric Butterfly Valves are widely used in metallurgy, electric power, petrochemical industry, water supply and drainage, municipal construction and other industrial pipelines. They are used to regulate flow and cut off fluid.


Product Detail

Product Tags

Features:
1.Small size and light in weight, easy to install. It can be mounted wherever needed, suitable for various actuators.
2.Simple, compact structure, quick 90 degree on-off operation.
3.Disc has two-way bearing, perfect seal, without leakage under the pressure test.
4.Flow curve tending to straight-line. Excellent regulation performance.
5.Various kinds of materials, applicable to different medium.
6.Strong wash and brush resistance and can fit to bad working condition.
7.Center plate structure, small torque of open and close.
8.Long service life. Standing the test of 10,000 times opening and closing operation.
9.Can be used in cutting off and regulation medium.
10.Disc & stem are fastened by pin, more stable

The range of JLPV Centric Butterfly Valve design is as follows:
1. Size: 1.5” to 48” DN40 to DN1200
2. Pressure: PN10/16, 125LB&150LB, 10K
3. Material: cast iron, carbon steel and stainless steel
4.Connection ends: Flange,Wafer,Lug Type according to ASME B 16.5
ASME B 16.25 in butt welding ends.
5.Design standard: BS5155, API609, EN593
6.Test standard: DIN3230 Part3, API598, EN12266-1
7. Face to face dimensions: DIN3202K1, API609, EN558-1, ISO5752
8. Medium: water, sewage, oil, food, gas, and so on
9. Test pressure:
Shell: 15bar/24bar
Seal: 11bar/17.6bar

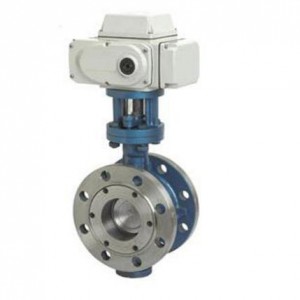

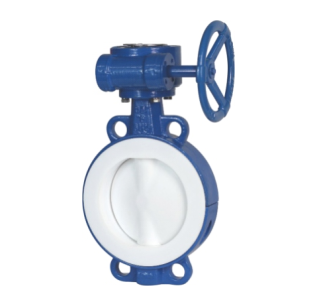

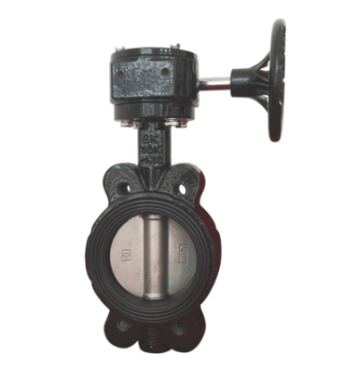

JLPV valves can be equipped with gear operator, pneumatic actuators, hydraulic actuators, electric actuators, locking devices, chainwheels, extended stems and many others are available to meet the customers’ requirements.
